3  Systems and Teams Analysis

Our first objective in this analysis is to describe the kinds of system and team organizations we encountered in our survey. We start with an explanation of our methodology, followed by some notable findings.

3.1 Steps Where Systems are Coupled

One important piece of system architecture information we were interested in is cases where systems span more than one GSBPM step along the flow of change. Using our definition of “system” from Chapter 2, a system that spans two or more GSBPM steps implies that it would not be straightforward to modify just one GSBPM step in the system without affecting the others.¹ This relates to the concept of coupling in software engineering, which measures the extent to which distinct software modules depend on each other.

Conceptual diagram of loose and high coupling. Source: https://en.wikipedia.org/wiki/Coupling_(computer_programming)

We asked the following question to get a coarse-grained understanding of systems that spanned more than one GSBPM step.

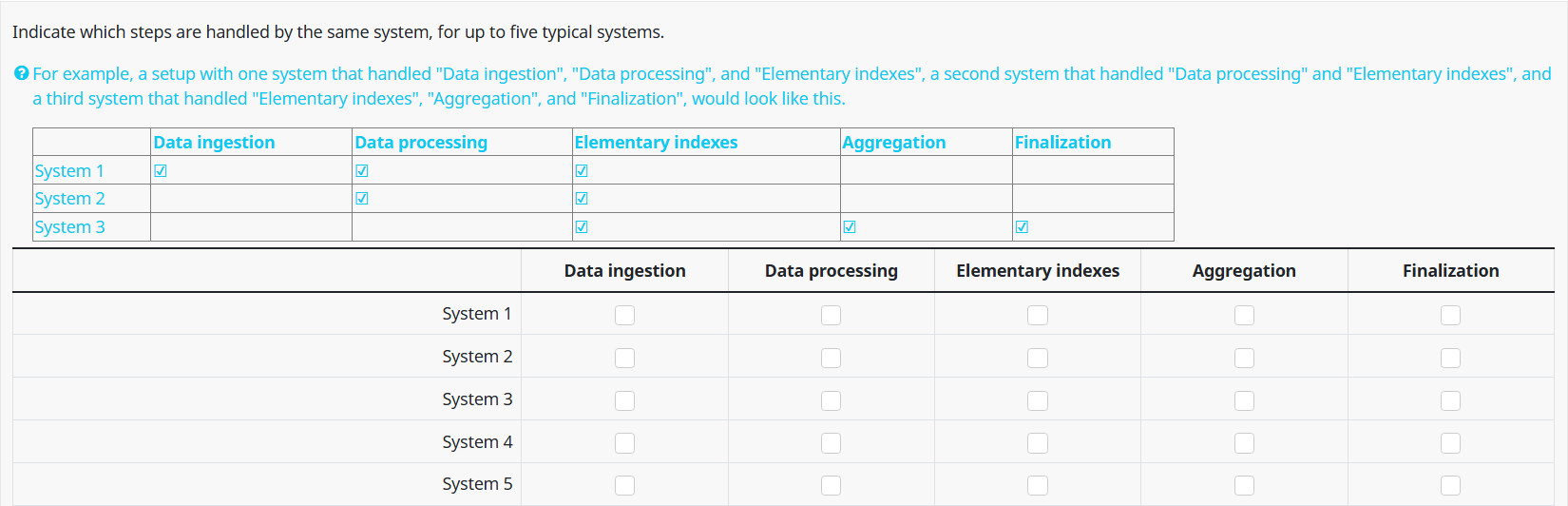

Systems Spanning Multiple GSBPM Steps Question

We note how frequently systems cross certain GSBPM steps in Table 3.1.

Table 3.1: Systems that span across multiple GSBPM steps

Data ingestion	Data processing	Elementary indexes	Aggregation	Finalization	Frequency
✅	✅	❌	❌	❌	21
❌	✅	✅	❌	❌	6
❌	❌	✅	✅	❌	0
❌	❌	❌	✅	✅	6
✅	✅	✅	❌	❌	12
❌	✅	✅	✅	❌	8
❌	❌	✅	✅	✅	11
❌	✅	✅	✅	✅	4
✅	✅	✅	✅	✅	20

The most common pattern we observed was that the same system handled both data ingestion and data processing with 21 occurrences. We suspect this is is fairly common as the two activities are conceptually similar, and often leverage similar tooling. For example, if an analyst wrote a web-scraping script to collect price data from a certain website, it’s reasonable that they would also perform some data cleaning activities in the same script before writing the output to persistent storage.

The second most common pattern we observed was the “Monolith” pattern, where we observe one system spanning all 5 GSBPM steps 20 times. We elaborate on this concept later in this section, but our suspicion is that systems like these mostly fall into one of two categories: (1) a small team and an Excel Workbook that handles everything from ingestion to finalization or (2) a single system managed by an IT team.

Monolithic systems are not inherently bad. If they are carefully designed for maximum cohesion and minimal coupling, they can be maintainable. However, if monoliths emerge accidentally, they often involve many tightly coupled components and become very difficult to maintain in the long run.

The next two most frequent coupling patterns are ingestion-processing-elementary indexes (12 occurrences) and elementary indexes-aggregation-finalization (11 occurrences).

A likely explanation for the former pattern is the existence of “mini-monolith” systems that perform all steps necessary to ingest, process, and create elementary aggregates using category-specific data and methods for a portion of the CPI. This form of system organization may create unnecessary coupling between these steps as changes to the data preparation activities may unduly impact elementary aggregation.²

The latter pattern may be likely to occur in NSOs that primarily leverage field collection and traditional methods. This form of system organization may create scaling challenges when alternative data sources and complex methods for these new data sources are introduced.

Suprisingly, there were zero occurrences of a system spanning elementary indexes-aggregation. In fact, there were only 7 cases where finalization was handled as a standalone step, suggesting that finalization activities are often coupled with the previous steps.

3.2 Team Types at Each Step

The next concept we try to learn in the survey is which types of teams discussed in Chapter 2 are present at each GSBPM step in the flow of change.

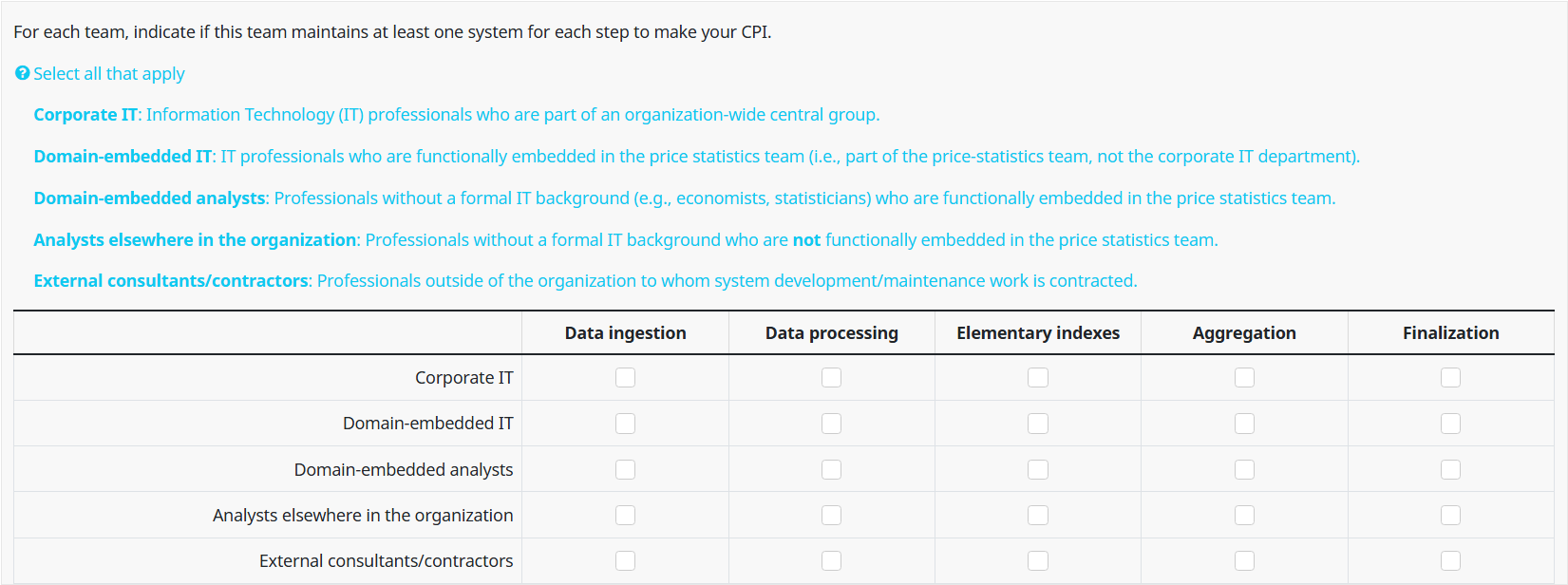

We present respondents with the following question.

Systems Spanning Multiple GSBPM Steps Question

Table 3.2: Common Team Combinations within GSBPM Steps

Data ingestion	Data processing	Elementary indexes	Aggregation	Finalization	Frequency
❌	❌	✅	❌	❌	Domain Analyst Only	120
❌	✅	✅	❌	❌	Domain Analysts and Domain IT	25
✅	❌	❌	❌	❌	Corporate IT-Only	33
❌	✅	❌	❌	❌	Domain IT-Only	20
✅	✅	❌	❌	❌	IT-Only	11
✅	❌	✅	❌	❌	Corporate IT and Domain Analysts Only	45

Table 3.2 shows how frequently certain team combinations were reported within any given GSBPM step.

We were surprised to see that Corporate IT and Domain Analyst teams occurred almost twice as frequently as teams with Domain-embedded IT and Domain-embedded analysts. In particular, this suggests that technical expertise offered by IT personnel is often centralized outside of the domain area rather than functionally embedding IT personnel within the domain team.

3.3 Commonly Occurring System and Team Topologies

We begin by sharing some commonly occurring system and team topologies that occurred in our responses.

We perform k-means clustering with a cluster size of 3 on each respondent’s answer the “system topology” part of the Representative System Group question.³

We were not able to find any rule or explanation that perfectly split respondents into some number of clusters for this question.

However, we were able to identify some high-level patterns that were consistent across the 3 groups. We use these patterns to characterize 3 archetypes that are explained below along with some illustrative examples from each cluster.

3.3.1 One or more System Groups Span the Entire Flow of Change

	Ingest	Process	Elementals	Aggregate	Finalize
System Group 1	TRUE	TRUE	TRUE	TRUE	TRUE
System Group 2	FALSE	FALSE	FALSE	FALSE	FALSE
System Group 3	FALSE	FALSE	FALSE	FALSE	FALSE
System Group 4	FALSE	FALSE	FALSE	FALSE	FALSE
System Group 5	FALSE	FALSE	FALSE	FALSE	FALSE

3.3.2 There is exactly one “split point” between System Groups

	Ingest	Process	Elementals	Aggregate	Finalize
System Group 1	TRUE	TRUE	FALSE	FALSE	FALSE
System Group 2	FALSE	FALSE	TRUE	TRUE	TRUE
System Group 3	FALSE	FALSE	FALSE	FALSE	FALSE
System Group 4	FALSE	FALSE	FALSE	FALSE	FALSE
System Group 5	FALSE	FALSE	FALSE	FALSE	FALSE

3.3.3 There are two or more split points between system groups

	Ingest	Process	Elementals	Aggregate	Finalize
System Group 1	TRUE	FALSE	FALSE	FALSE	FALSE
System Group 2	FALSE	TRUE	FALSE	FALSE	FALSE
System Group 3	FALSE	FALSE	TRUE	TRUE	TRUE
System Group 4	FALSE	FALSE	FALSE	FALSE	FALSE
System Group 5	FALSE	FALSE	FALSE	FALSE	FALSE

3.4 Assigning Architectures to Organizations

We use responses to the Representative System Group question to assign NSOs to one of the three architecture types defined below.

3.4.1 Monolithic Architecture

We assume that an NSO has a monolithic architecture if any of their system groups span all 5 GSBPM steps.⁴ We classify organizations where any system group spans all 5 GSBPM steps as monolithic because we are concerned with the precense of a system group that is plausibly monolithic, we do not have a large enough sample to distinguish between cases where there is a monolithic system group and another system group.

Our reasoning for this assumption is that if the respondent thought a system group spanning all 5 GSBPM steps was similar enough that there was no need to split any subset of it into a second system group, it is probably due to coupling between one or more systems in the system group.

It is important to note that since we do not ask questions about the quantity or span of systems, we cannot know for certain whether or not a system group spanning all 5 GSBPM steps is truly monolithic.⁵

For example, a system group that spans all 5 GSBPM steps could be comprised of one system that truly is monolithic with respect to the 5 GSBPM steps, or it could be comprised of 5 or more distinct systems that the respondent felt were sufficiently representative of their typical workflow.⁶

Nevertheless, we needed to make some simplifying assumptions to make the response burden of this survey realistic, and we do not believe this assumption is too far fetched.

3.4.2 Hybrid Architectures

We classify any NSO that (1) is not a monolith and (2) has exactly two system groups with any split between them as having a Hybrid architecture type.

Our rationale for this category is to look at cases where there is one “boundary point” between two distinct system groups.

3.4.3 Modular Architectures

We classify any NSO that (1) is not a monolith, (2) is not a hybrid, and (3) has three or more system groups with any splits between them as having a Modular architecture type.

While this kind of architecture is not necessarily perfectly modular, there are definitely two or more “boundary points” between three or more distinct systems.

There are a couple of important points to note about Hybrid and Modular architectures as defined above.

1. Unlike Monolithic architectures where we have to make an assumption about the internal structure of a system group, here we know for certain that there are explicit “boundary points” between two system groups that the respondent deemed sufficiently different to not be grouped together.

2. Using our definition of Systems given in Chapter 2, Hybrid and Modular architectures are guaranteed to pass output data from one system as input data to another system at least once⁷.

3.5 Assigning Team Types to Organizations

As system architectures or development practices may be adopted differently by teams depending on their roles and technical skills, we categorize the initial team types we described in the survey into new team categories. Specifically:

• Stream Aligned team: A system group is maintained by domain-analysts, domain-IT, or both. The idea is that these teams are comprised entirely of individuals who are embedded in the business domain.⁸ Therefore, they are likely to have a better understanding of the CPI business domain and thus may make different technical and organizational decisions than teams who lack this domain knowledge.

• IT-Only team: A system group is maintained by corporate-IT, domain-IT, or both. These teams are likely to have the necessary software engineering skills, but may or may not have the necessary domain knowledge.

• Analyst-Only team: A system group is maintained by domain-analysts, elsewhere-analysts, or both. These teams are likely to have the necessary analysis and methodology skills, but may or may not have domain knowledge and also may not have the necessary software engineering skillset.

• Other Mix team: Assigned to organizations that have not been assigned to any of the above three team types.

Note

Unlike the architecture definitions earlier in this section, these team types are not mutually exclusive in the way we define them. For example, an organization could have one system group maintained by a Stream Aligned team, and a second system group maintained by an IT-Only team.⁹

3.6 Are Certain Team Types Correlated with Certain Architectures?

We define similarity between organizations having a particular team type and a representative system with a particular architecture as follows.

\[ \text{Similarity} = \frac{\sum_{\text{respondents}} \text{Has Architecture Type} == 1 \land \text{Has Team Type} == 1}{\sum_{\text{respondents}} \text{Has Team Type} == 1} \]

The rationale for this similarity metric is that we care about what fraction of organizations with a particular team type also uses a given architecture type relative to how many instances of that team type are observed in the sample. Note that this can also be interpreted as a conditional probability where team type is the conditioning variable.

	Monolith	Hybrid	Modular
Stream Aligned Team	0.465116279069767	0.13953488372093	0.395348837209302
IT-Only Team	0.346153846153846	0.153846153846154	0.5
Analyst-Only Team	0.4	0.2	0.4
Other Mix	> 0.75	< 0.25	< 0.25
Sample Average	0.491803278688525	0.147540983606557	0.360655737704918

There are a few notable observations to point out in the above distribution.¹⁰

1. IT-Only teams are more likely than average to be present in NSOs with Modular representative systems.

2. Stream-Aligned teams are more likely to be present in NSOs with Monolithic representative systems compared to IT-Only teams.

3. Other Mix teams were much more likely to be present in NSOs with Monolithic representative systems compared to all other team types.¹¹

Throughout the remainder of this report, we look at how various practices and outcomes are associated with the presence of each architecture type and team type.

---

1. For example, a single Python script that processes data using Pandas and immediately performs a price index calculation on the processed data frame while it’s still in memory is a system that spans the (1) Processing and the (2) Elementary Indexes GSBPM steps. Such a system has coupled the Processing logic and the Elementary Indexes logic because it is not straightforward to change just the Processing component without also needing to consider how the Elementary Indexes component is affected.

2. See Goussev (2023) for an overview of the shift from data and method specific monolithic systems to a more standardized modular approach.

3. Due to the small sample size, we were hesitant to try and split the sample into more than 3 groups. While there are almost certainly more than 3 meaningful system topologies that describe CPI Production Systems, our concern was that using more than 3 clusters would lead to us picking up idiosyncrasies in this specific sample rather than more general patterns that are likely true in a more general setting.

4. There were also two NSOs who explicitly stated that the same system does not handle more than one step for making their CPI across all systems. We assign these two records to the “modular” architecture category regardless of their answer to the Representative System Group question.

5. It is probably more realistic to think about the monolithic category as “more likely to have significant coupling between systems compared to organizations categorized as modular” rather than a true monolith in the strict sense of the term.

6. The number of respondents classified as monoliths who stated that the same system handles more than one step for making their CPI across all systems is 21/29 (8/29 skipped this question). This evidence alone is not sufficient to know one way or the other if these cases are truly monolithic, but we take it as evidence that the majority of assignments to “monolith” explicitly indicated that at least some systems cut across GSBPM boundaries.

7. This is in contrast to managing data entirely within a single system, which may be happening in the monolithic architectures.

8. If we had a larger sample size, we would have imposed the restriction that both domain analyst and domain IT teams must be present so that we could ensure domain expertise and software engineering skills exist together. Due to the small sample size, however, we had to include respondents with teams comprised of domain analyst and/or domain IT teams.

9. The rationale for this decision is that we could not think of a sensible way to break ties. For example, if one system group is maintained by a Stream Aligned team and another is maintained by an IT-Only team, is the NSO more appropriately labelled as a Stream Aligned team or as an IT-Only team? We take care while presenting results to make clear that some NSOs may be classified in more than one category if more than one team type is present in their representative system description.

10. Here and throughout this report, we do not make any claims about the statistical significance of our results as we could not think of any straightforward or meaningful way to compute confidence intervals over the small sample of data we collected. Moreover, our goal with this report is more descriptive than prescriptive. We are aiming to describe the current state of CPI Production Systems and present notable differences that are worth investigating further, rather than claiming what should be done using the results of this survey alone.

11. It is important to note that a relatively small fraction of the sample contained Other Mix teams, so this result could be partly or entirely explained by a small number of outliers.
